IN-WALL SPEAKER
The next level in-wall with Directivity control to even lower frequencies while enabling a DPC array and timbre matching not only in the raw materials but in the critical frequency response, power response, phase. In addition, the S5i is THX Dominus LCR certified. A true value in the medium size home theater in-wall compared to almost any in-wall on the market and can be utilized as an LCR with an acoustically transparent screen or as an LR in the Media room.
Personalize your speakers to match your style
We have a variety of different colors to choose from. When picking your speakers, you also need it to match your home and interior. Choose between our standard finishes, wooden finished or get custom painted speakers
Standard finishes
Piano black
Piano white
It's all in the details

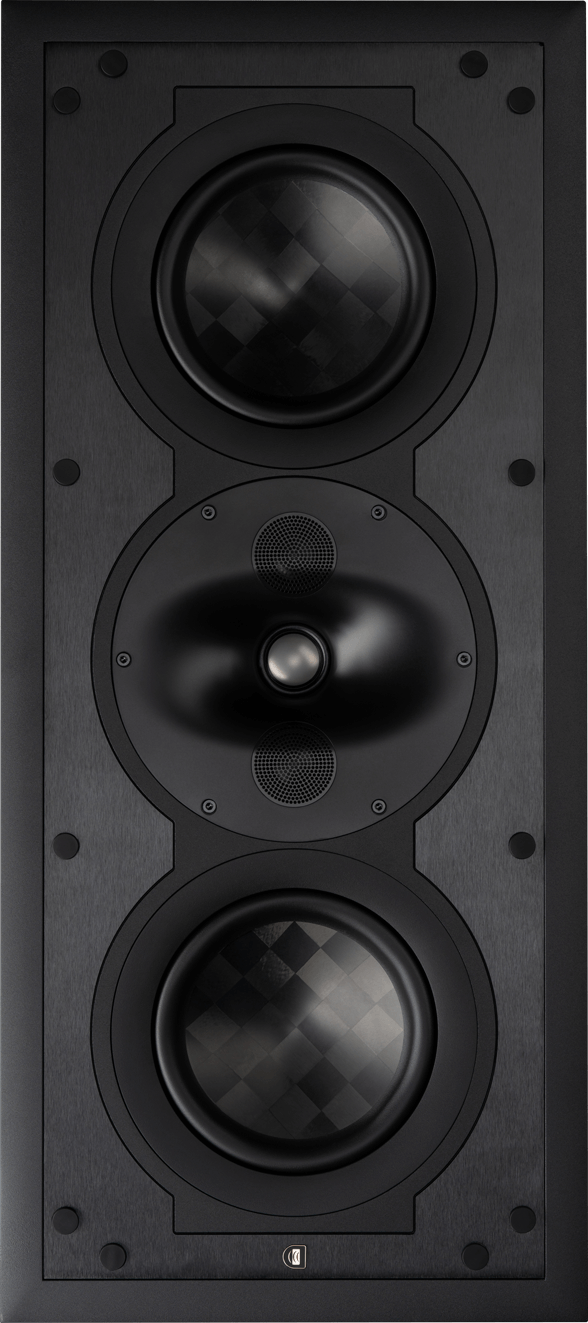

Based largely on our flagship S5m. This is the center channel implementation. Here we have adapted the design for inwall applications. Shallow 4” mounting depth and integral aluminum extrusion rear enclosure insure consistent performance and minimal sound propagation to adjacent rooms. Featuring our proprietary DPC-Array controlling Mid/High frequencies, centered by our finest 28mm Beryllium dome and dual 28mm TPCD ultra-lightweight domes. All transducers are developed ground up by our engineers – bringing decades of research, culminating in this world class design. We teamed up with companies in the USA and Sweden to bring modern material science to hi-fi. Utilizing advanced Comsol acoustic modeling, our DPC-array is the result of 18 months of painstaking simulations and prototyping. The result is one of the most technologically advanced loudspeakers available. This new tweeter/waveguide DPC-Array delivers amazing accuracy, smoothness, and directivity control to handle the critical vocal range and delicate treble. All S-Series speakers share the same DPC-Array and benefit from our unique timbre matching technique across the entire series. Another PERLISTEN inwall loudspeaker to be certified for THX Dominus – their highest rating.
Dimensions (HxWxD) | 665 x 298 x 111mm 26.2 x 11.8 x 4.4” |
Mounting dimensions (HxWxD) | 624 x 257 x 101.7mm 24.6 x 10.1 x 4.0” |
Weight | 15.9 kg (35.0 lbs.) |
Available finishes | White grille, Black baffle |
Enclosure Alignment | 3-way acoustic suspension |
Driver compliment | DCP-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(2) Textreme TPCD |
Sensitivity | 91.9dB / 2.83v / 1.0m |
Impedance | 4Ω nominal / 3.1Ω min |
Frequency Response (+/-1.5dB) | 80 - 20kHz +/-1.5dB window |
Frequency Response (-10dB) | 52 - 37kHz |
Typical In Room bass extension | 46Hz |
Recommended Amplifier Power | 100 - 350W RMS |
SPL capability (100-20kHz) | 117.3dB peak 117.0dB peak <3% 2nd, 3rd Harmonics |
Certification | THX Dominus |
