R5m
MONITOR

The R-series Monitor is a culmination of S-series patented technology with materials developed from the ground up in every part of the design just like it’s big brothers.  The R5m is a true Chameleon with enough bass extension to offer an amazing 2 channel experience, the heart of a reference level 2.1 system, the LCR for a home theater, or surrounds in that monster R-series System. The option for a fully vented full range experience or a sealed enclosure, help transform this speaker to adapt to any system.

Experience
Unmatched Sound Quality

Our R-Series products are available in a single, carefully selected High Gloss Black finish that complements most home interior designs. Enjoy the timeless design with exceptional performance, all in one stunning finish.

Standard finishes

Piano black

It's all in
the details

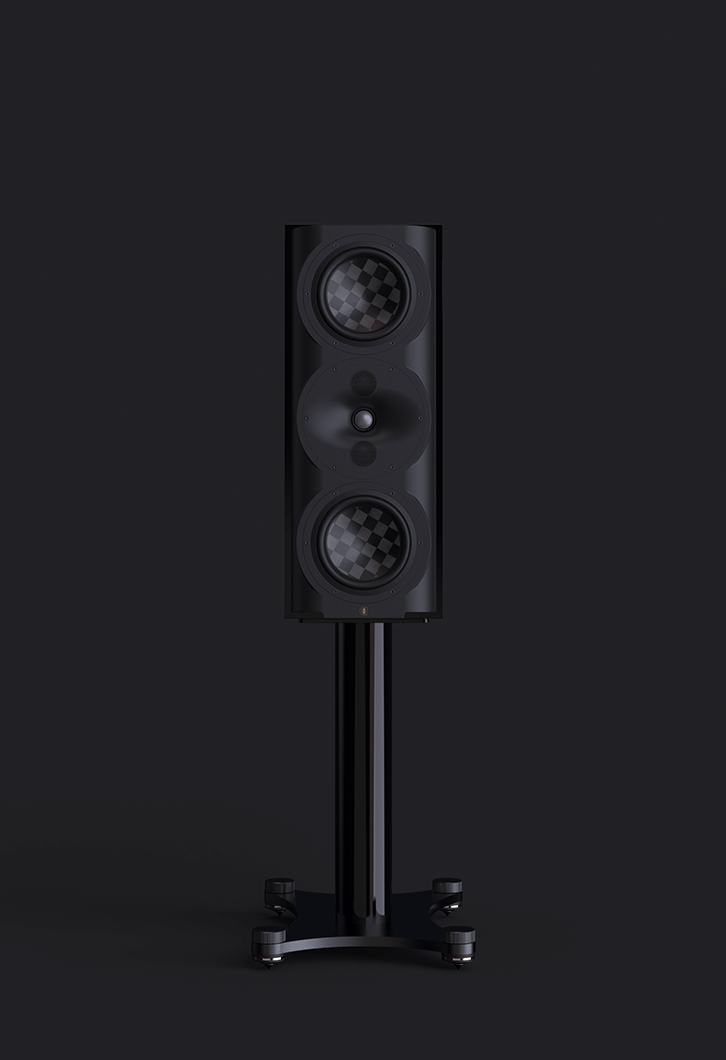

Designed to be mounted on optional stand, or mounted to a wall with our tilt swivel bracket. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. The R5m can be aligned as bass reflex or acoustic suspension depending on specific tastes. Rich, dynamic bass matched with advanced mid/treble directivity pattern control and silky highs offer best in class performance.

Technical specifications

Enclosure alignment3-way bass reflex / acoustic suspension
Driver complimentDPC-Array:
26mm(3) Silk dome
Woofers:
165mm(2) HPF diaphragms
Sensitivity89.2dB / 2.83v / 1.0m
Impedance4Ω nominal / 2.7Ω min
Response Linearity80 - 20kHz +/-1.5dB window
Frequency Response (-10dB)Bass reflex: 40 - 32kHz
Acoustic suspension: 47 - 32kHz
Typical In Room bass extensionBass reflex: 37Hz
Acoustic suspension: 43Hz
Dimensions (HxWxD)546 x 230 x 336mm
21.5 x 9.0 x 13.2"
Weight17.5 kg (38.5 lbs.)
Recommended Amplifier Power100 - 250W RMS
SPL capability @1m (100-20kHz)113.2dB peak <3% - 2nd, 3rd Harmonics
CertificationTHX Dominus, THX Ultra
Available finishesPiano black
