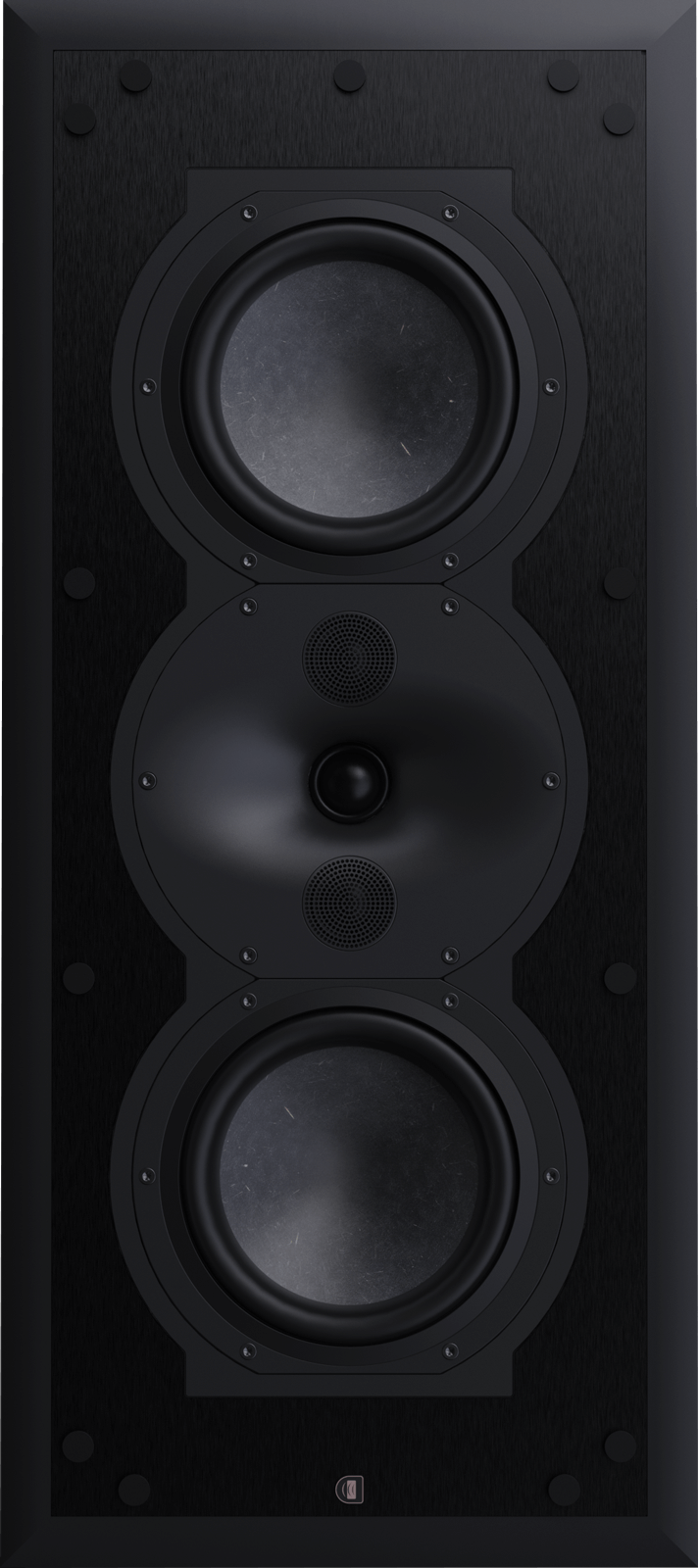

R5i-LR - PERLISTEN® Audio

IN-WALL
SPEAKER

The next level in-wall with Directivity control to even lower frequencies while enabling a DPC array and timbre matching not only in the raw materials but in the critical frequency response, power response, phase. Based on the R5t tower, the R5i-LR is THX Dominus surround and Ultra LCR certified.  A true value in the medium size home theater in-wall compared to almost any in-wall on the market and can be utilized as an LCR with an acoustically transparent screen or as an LR in the Media room.

Personalize your speakers to match
your style

We have a variety of different colors to choose from. When picking your speakers, you also need it to match your home and interior. Choose between our standard finishes, wooden finished or get custom painted speakers

Standard finishes

Piano black

Piano white

It's all in
the details

Based largely on the R5m. Adapted for inwall applications. Shallow 4” mounting depth and integral aluminum extrusion rear enclosure insure consistent performance and minimal sound propagation to adjacent rooms. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. All R-Series speakers share the same DPC-Array and benefit from our unique timbre matching technique across the entire series. Another PERLISTEN inwall loudspeaker to be certified for THX Dominus – their highest rating.

Technical specifications

Dimensions (HxWxD)298 x 665 x 111mm
11.8 x 26.2 x 4.4"
Mounting dimensions
(HxWxD)
257 x 624 x 257 x 101.7mm
10.1 x 24.6 x 4.0"
Weight15.9 kg (35.0 lbs.)
Available finishesWhite grille, Black baffle
Enclosure Alignment3-way acoustic suspension
Driver complimentDCP-Array:
26mm(3) Silk dome
Woofers:
165mm(2) HPF diaphragms
Sensitivity89.4dB / 2.83v / 1.0m
Impedance4Ω nominal / 3.3Ω min
Frequency Response (+/-1.5dB)80 - 20kHz +/-1.5dB window
Frequency Response (-10dB)40 - 32kHz
Typical In Room bass extension34Hz
Recommended Amplifier Power50 - 250W RMS
SPL capability (100-20kHz)113.4dB peak
111.0dB peak <3% - 2nd, 3rd Harmonics
CertificationTHX Dominus, THX Ultra
A-series is only available in specific geographical markets. Please contact your local dealer or distributors.
