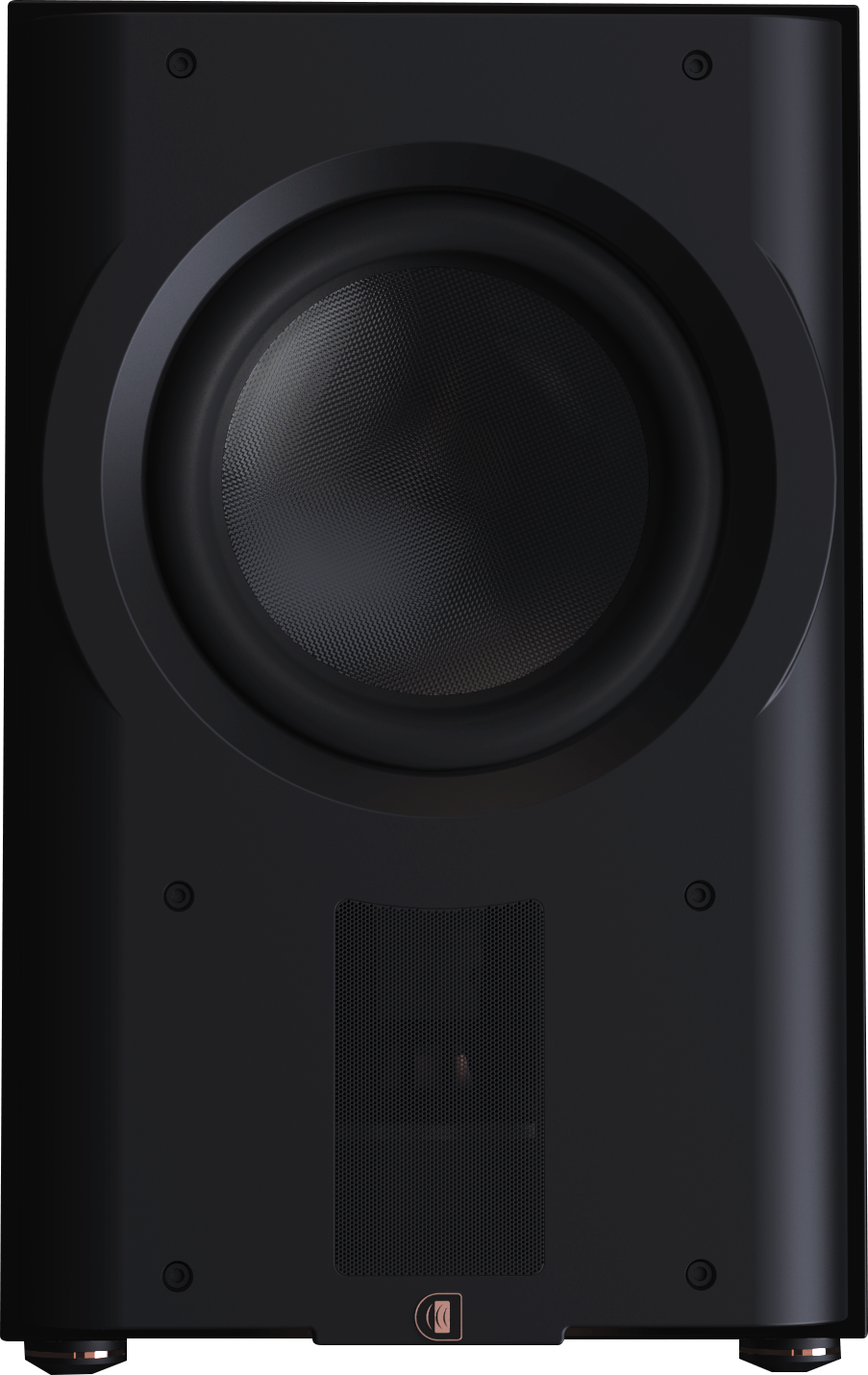

D212s
subwoofer

Massive bass, minute distortion levels, just as we intended. Grills are optional.

Subwoofer
is the new black

Standard finishes

Piano black

Grills are optional

It's all in
the details

Dynamic, Accurate, Solid. The audiophile’s choice. Where sound quality and Transients free of overhang are paramount. Simply no better expression of bass performance then our push-pull subs. Ground up drivers developed by our team of engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of Klippel laser measurements to dial things in. To take performance to another level, the push-pull drivers reduce even order harmonics distortion by an additional 10-12dB. Powered by our 3.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. All D-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App. Certified by THX Dominus, The D-Series subs are the world’s first. A testament to the level of design and performance achieved.

Technical specifications

AlignmentPush-Pull, acoustic suspension
Amplifer3.0kW rms short term
Display Interface2.4" LCD color touchscreen
AppiOS and Android
Processor32-bit Arm Cortex M4, double precision floating point math
DSP EngineTi DSP 48-bit data paths
Driver compliment(2)300mm, Carbon fiber diaphragm
+/-30mm linear excursion
Reference sensitivity92dB / 150mV/ 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ
20-231Hz (-6dB) / 16-245Hz (-10dB)
15-231Hz (-6dB) / 13.5-245Hz (-10dB)
24-231Hz (-6dB) / 18-245Hz (-10dB)
Inputs(2) Balanced XLR
(2) Unbalanced RCA
Outputs(2) Balanced XLR unbuffered
(2) Unbalanced RCA unbuffered
Parametric EQ10-Band PEQ with 3 user presets
Low Pass filterBypass, 30-160Hz, slope 6,12,18,24dB/oct
PhaseVariable 0-270°
PolarityNormal / inverted
Configurable Auto turn-on and 12v TriggerXLR 1, XLR 1+2, RCA 1, RCA 1+2
Dimensions (HxWxD)668 x 420 x 550mm
26.3 x 16.5 x 21.6"
Weight68.0 kg (149.6 lbs.)
CertificationTHX Dominus
Available finishesPiano black
A-series is only available in specific geographical markets. Please contact your local dealer or distributors.
