R15s subwoofer - PERLISTEN® Audio


Tiny frame, mighty bass

is the new black

Available in an exclusive satin black finish

Standard finishes

Satin black

It's all in
the details

R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

Technical specifications

AlignmentAcoustic suspension
Amplifer1.0kW rms
Display Interface2.4" LCD color touchscreen
AppiOS and Android
Processor32-bit ARM Cortex M4, double precision floating point math
DSP EngineTi DSP 48-bit data paths
Driver compliment380mm, Glass fiber diaphragm
+/-23.7mm linear excursion
Reference sensitivity92dB /150mV/ 1.0m
Frequency Response
Boost (Large Room) EQ
Cut (Small Room) EQ

20-388Hz (-6dB) / 16-468Hz (-10dB)
16-388Hz (-6dB) / 14-468Hz (-10dB)
25-388Hz (-6dB) / 19-468Hz (-10dB)

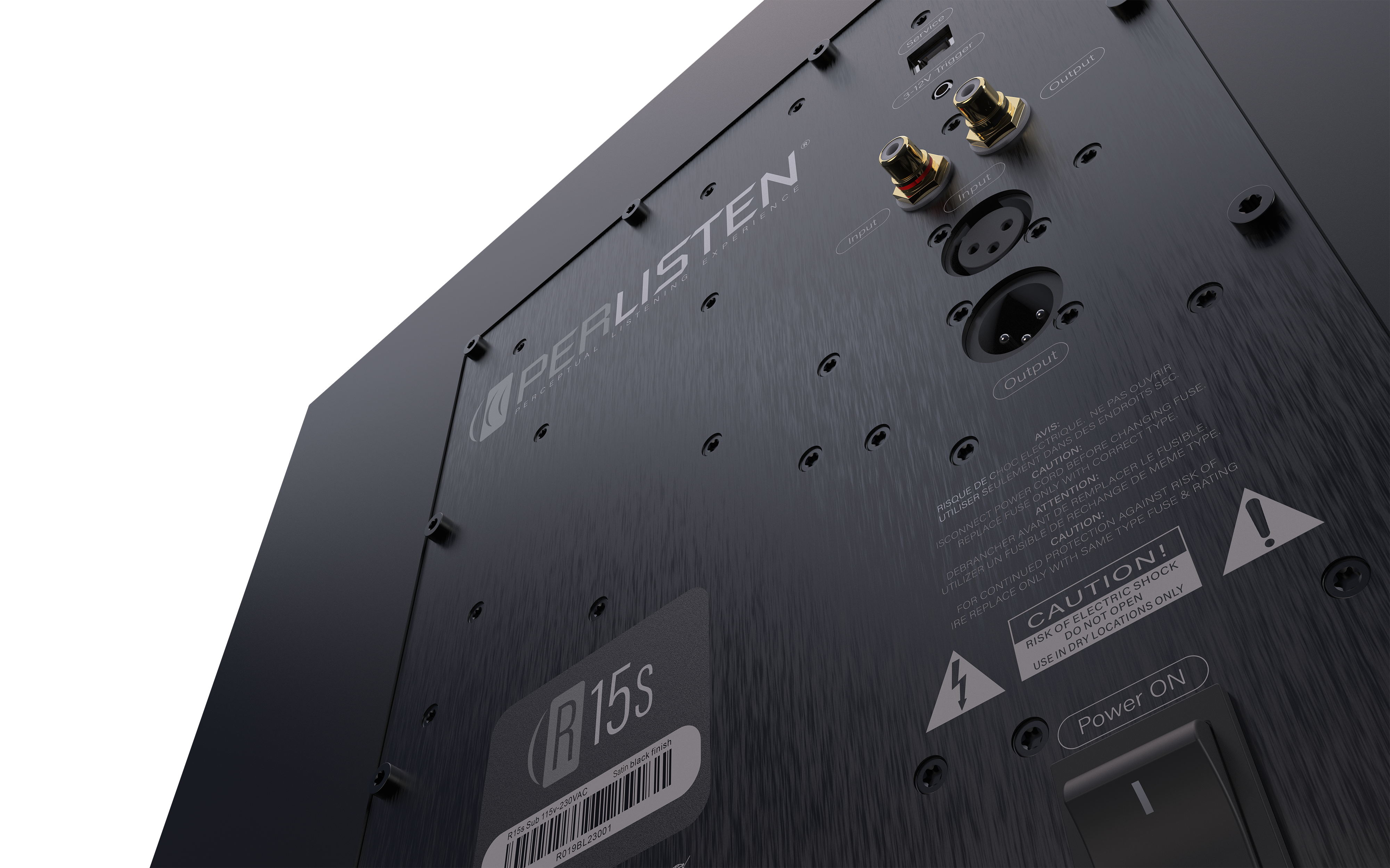

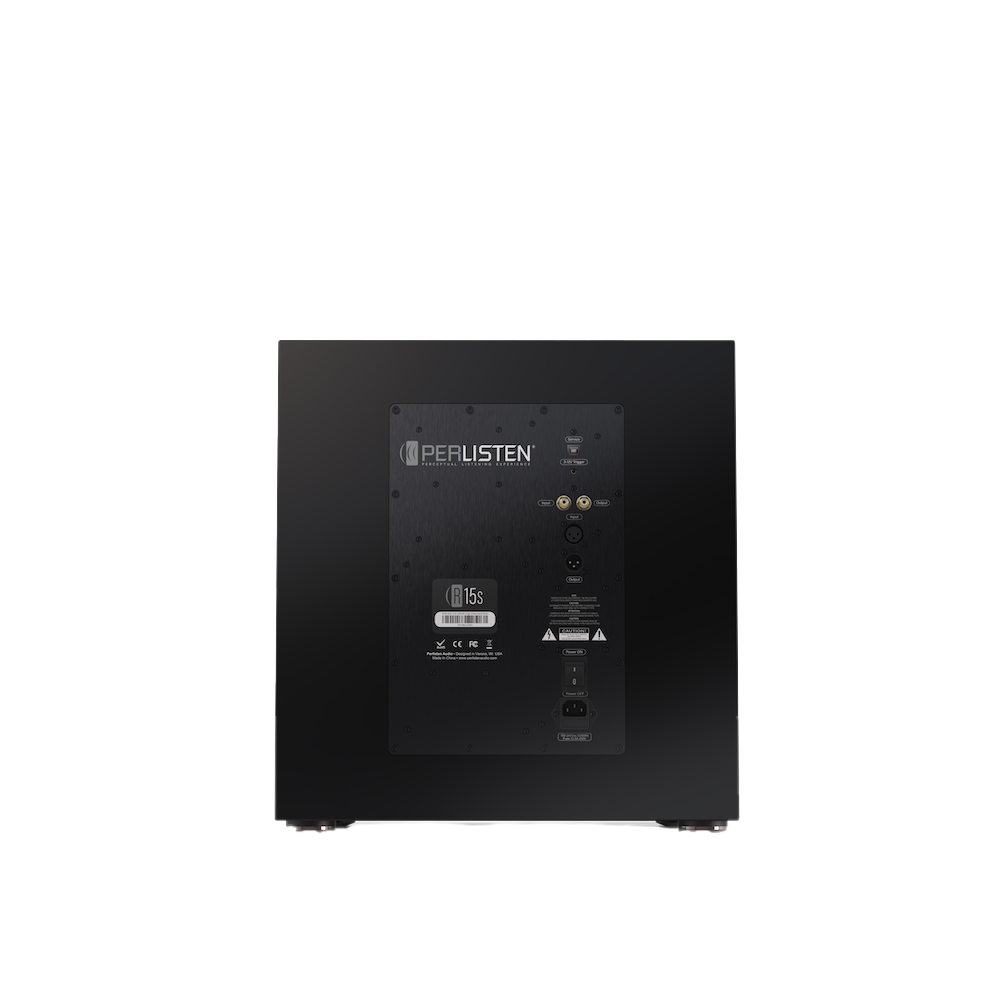

Inputs(1) Balanced XLR
(1) Unbalanced RCA
Outputs(1) Balanced XLR unbuffered
(1) Unbalanced RCA unbuffered
Parametric EQ10-Band PEQ with 3 user presets
Low Pass filterBypass, 30-160Hz, slope 6,12,18,24dB/oct
PhaseVariable 0-270°
PolarityNormal / inverted
Configurable Auto turn-on and 12v TriggerXLR, RCA
Dimensions (HxWxD)498 x 460 x 465mm
19.6 x 18.1 x 18.3"
Weight overall35.5 kg (78.1 lbs.)
Available finishesSatin black
A-series is only available in specific geographical markets. Please contact your local dealer or distributors.
