R4s
SURROUND

The R4s angled on-wall surround is the final piece to any great system with the same R-series DPC array to offer real timbre matching on every part of your PERLISTEN Home Theater. We take Timbre matching to another level and no sacrifices are made just because it’s a surround, we care, and know you do too. Not only are the same materials used but the same response targets for on and off axis response that the R-series and S-series speakers uphold are used because you deserve it. Flush mount on wall bracket is included and optional tilt and swivel bracket is available.

Personalize your speakers to match
your style

We have a variety of different colors to choose from. When picking your speakers, you also need it to match your home and interior. Choose between our standard finishes, wooden finished or get custom painted speakers

Standard finishes

Piano black

It's all in
the details

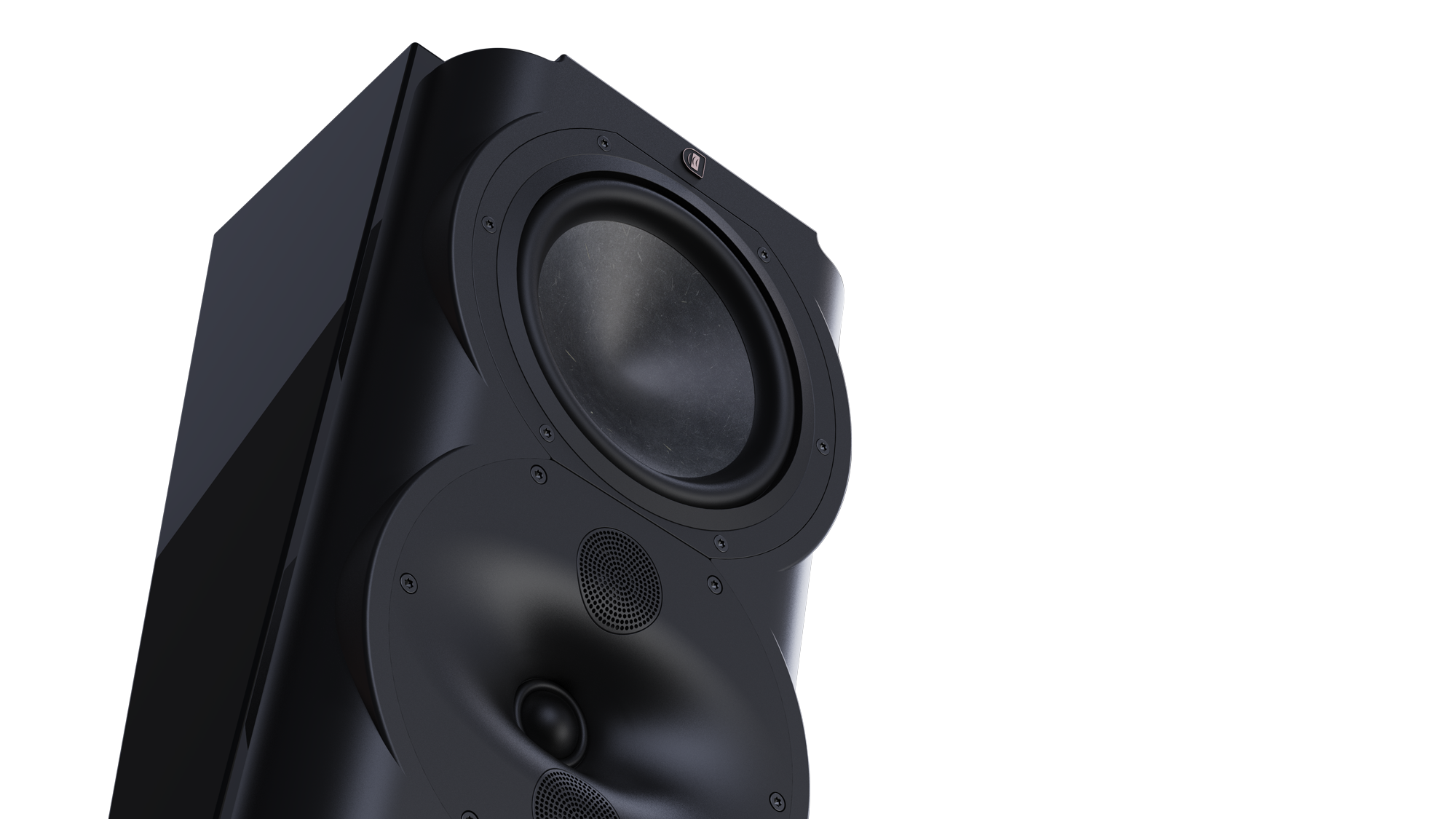

Designed to be mounted with integral keyhole, optional tilt/swivel bracket, or mounted behind screens. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofer is made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. Optimized for smooth power response (2pi or 4pi) the R4s is designed to work well as part of a larger R-series system, versatile enough to be used as any channel.

Technical specifications

Enclosure alignment3-way acoustic suspension
Driver complimentDPC-Array:
26mm(3) Silk dome
Woofers:
165mm HPF diaphragm
Sensitivity86.5dB / 2.83v / 1.0m
Impedance4Ω nominal / 3.7Ω min
Response Linearity300 - 20kHz +/-1.5dB window
Frequency Response (-10dB)48 - 32kHz
Typical In Room bass extension42Hz
Dimensions (HxWxD)378 x 230 x 173mm
14.9 x 9.0 x 6.8"
Weight9.5 kg (20.9 lbs.)
Recommended Amplifier Power50 - 200W RMS
SPL capability @1m (100-20kHz)109.5dB peak <3% - 2nd, 3rd Harmonics
CertificationTHX Ultra
Available finishesPiano black, Gloss white
A-series is only available in specific geographical markets. Please contact your local dealer or distributors.
