D215s
subwoofer

The Subwoofer that will surprise you with its accuracy.

Subwoofer
is the new black

At the moment we only have the subwoofer I the exclusive piano black.

Standard finishes

Piano black

It's all in
the details

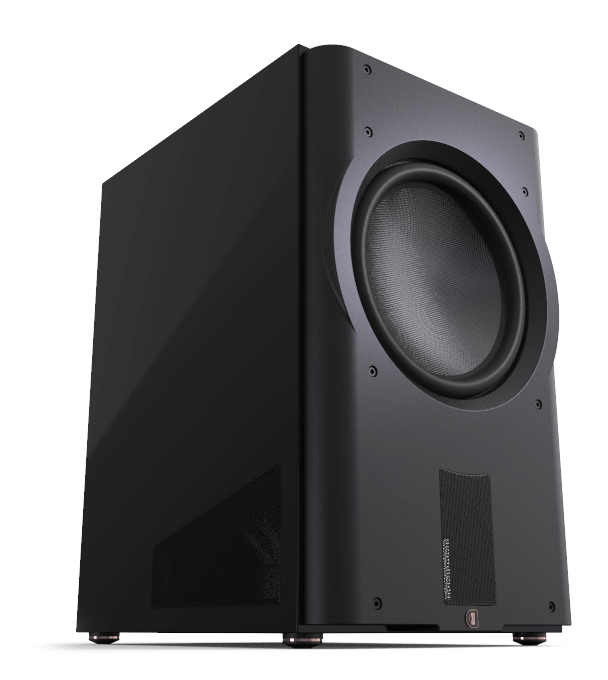

MODEL D215s Subwoofer: Dynamic, Accurate, Solid. The audiophile’s choice. Where sound quality and Transients free of overhang are paramount. Simply no better expression of bass performance then our push-pull subs. Ground up drivers developed by our team of engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of Klippel laser measurements to dial things in. To take performance to another level, the push-pull drivers reduce even order harmonics distortion by an additional 10-12dB. Powered by our 3.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. All D-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App. Certified by THX Dominus, The D-Series subs are the world’s first. A testament to the level of design and performance achieved.

Technical specifications

AlignmentPush-Pull, acoustic suspension
Amplifer3.0kW rms short term
Display Interface2.4" LCD color touchscreen
AppiOS and Android
Processor32-bit ARM Cortex M4, double precision floating point math
DSP EngineTi DSP 48-bit data paths
Driver compliment(2)380mm, Carbon fiber diaphragm
+/-30mm linear excursion
Reference sensitivity92dB / 150mV / 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ
20-200Hz (-6dB) / 16-210Hz (-10dB)
15-200Hz (-6dB) / 13-210Hz (-10dB)
24-200Hz (-6dB) / 18-210Hz (-10dB)
Inputs(2) Balanced XLR
(2) Unbalanced RCA
Outputs(2) Balanced XLR unbuffered
(2) Unbalanced RCA unbuffered
Parametric EQ10-Band PEQ with 3 user presets
Low Pass filterBypass, 30-160Hz, slope 6,12,18,24dB/oct
PhaseVariable 0-270
PolarityNormal / inverted
Configurable Auto turn-on and 12v TriggerXLR 1, XLR 1+2, RCA 1, RCA 1+2
Dimensions (HxWxD)805 x 500 x 650.5mm
31.7 x 19.7 x 25.6"
Weight92.0 kg (202.4 lbs.)
CertificationTHX Dominus
Available finishesPiano black
