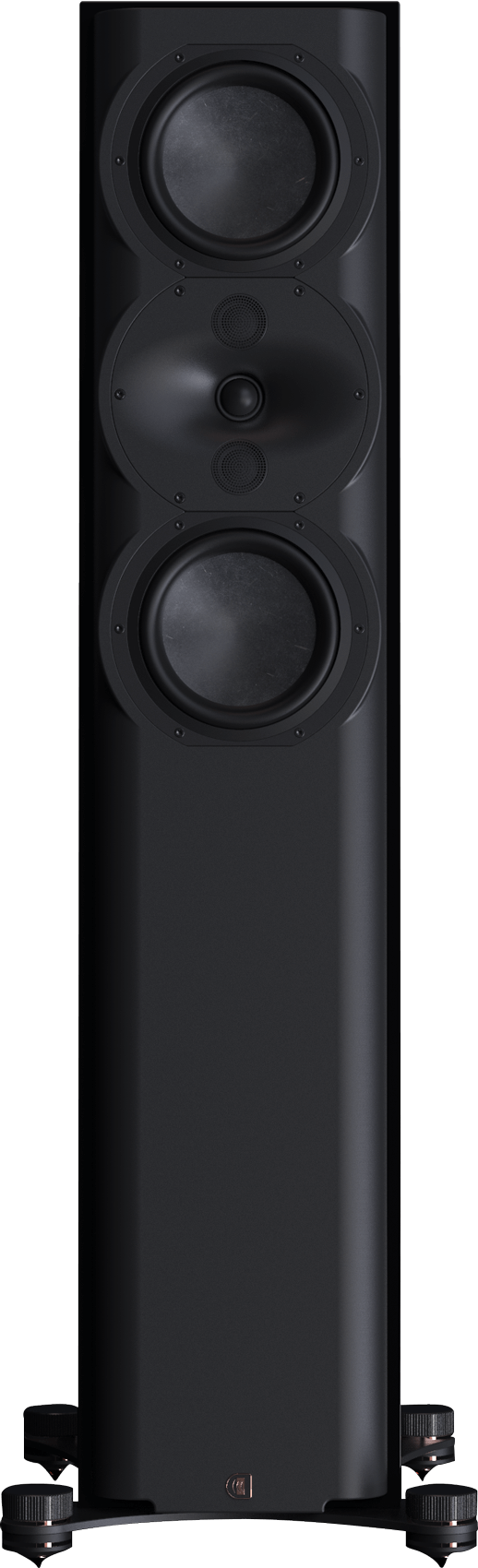

The R5 Tower is designed as a stand alone 2ch high fidelity speaker with the versatility to be used as part of our multi-channel systems and Shares “trickle-down” technology from our flagship S-Series. Prepare to experience what rivals many flagship speakers.
Personalize your speakers to match your style
We have a variety of different colors to choose from. When picking your speakers, you also need it to match your home and interior. Choose between our standard finishes, wooden finished or get custom painted speakers
Black Cherry Natural
Ebony High Gloss
Show of your personal style with a custom paint job. Choose between all PANTONE© colors and get your favorite color on your speakers.
R series system
The Patent Pending DPC-Array for the R series is based on three 26mm domes and guarantees the same excellent directivity control of it’s big brother the S7t while being timbre matched with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically for their smooth, effortless representation of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. These woofers can be aligned as bass reflex or acoustic suspension depending on specific tastes creating rich, dynamic bass matched with advanced mid/treble directivity pattern control
Keeping up with the S series is difficult task so we had to develop a new cone formulation made of mixed long fiber hardwood, Bamboo, and wool. The amazing properties of strength, mass, and damping stay true to the sound of any nuance or transient the R5t is asked to reproduce without introducing coloration.
It's all in the details
Designed as a stand alone 2ch high fidelity speaker with the versatility to be used as part of multi-channel systems. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivty control and timbre matching with all R-Series speakers. The Silk diaphrams developed ground up, chosen specifically their smooth, effortless representaion of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in devlopment, bringing new technolgy to one of the oldest materials used in loudspeaker design. These woofers can be aligned as bass reflex or acoustic suspension depending on specfic tastes. Rich, dynamic bass matched with advanced mid/treble directivity pattern control and silky highs offer best in class performance.
|Enclosure alignment||3-way bass reflex / acoustic suspension|
|Driver compliment||DPC Array:
26mm(3) Silk dome
165mm(2) HPF diaphragms
|Impedance||4Ω nominal/3.2Ω min|
|Crossover Frequency||1.25Hz, 4.4kHz|
|Frequency Response (+/-2dB)||80 - 20kHz Listening window|
|Frequency Response (-10dB)||Bass reflex: 24 - 32kHz
Acoustic suspension: 38 - 32kHz
|Typical in room bass extension||Bass reflex: 21Hz
Acoustic suspension: 32Hz
|Weight||26.5 kg (58.3 lbs.)|
|Recommended Amplifier Power||100-250W RMS|
|SPL capability (100-20kHz)||111dB peak <2%-2nd, 3rd Harmonics|
|Available finishes||Piano black, Gloss white, Cherry (gloss or matte), Mahogany (gloss or matte), Oak (gloss or matte), Ebony (gloss or matte)|
